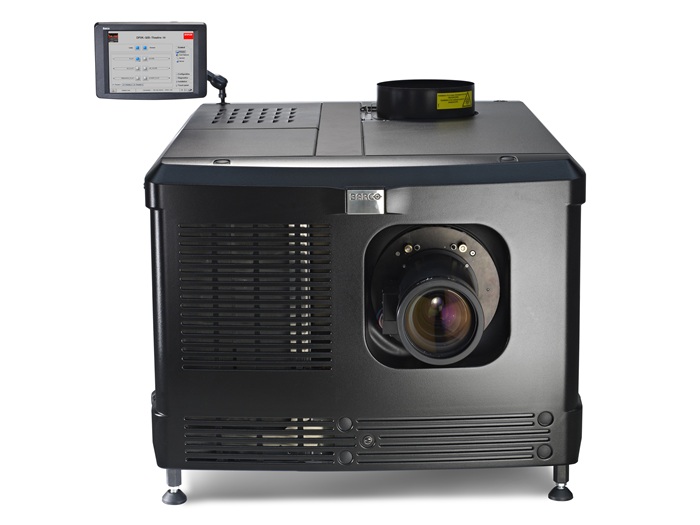

BARCO DP4K-32B
型  號: DP4K-32B
簡  介: The Barco DP4K-32B is an ultra-bright Enhanced 4K cinema projector for screens up to 32m (105ft). Featuring Texas Instruments' 1.38” DLP CinemaR chip, the DP4K-32B is specifically designed to ensure a razor-sharp movie experience on premium cinema screens.
  詳 細 說 明

  • Enhanced 4K resolution and ultimate brightness for a premium movie experience

  • Lowest cost of ownership thanks to lowest lamp operating cost, re-usable filters, low maintenance, etc.

  • Maximum ease-of-use through intuitive user interface

  • Long-term image quality and brightness thanks to Barco proprietary sealed engine and advanced DMD cooling

  • Coolest 4K engine for enhanced lifetime thanks to Barco's patented, advanced DMD cooling

  • Easy installation and maintenance thanks to proven modular design and common platform with DP2K series

  • Also available as fully integrated, ready-to-use projection and media server package

Digital MicroMirror Device™3 x 1.38" DC4K dark metal devices
Native resolution4,096 x 2,160 pixels
HousingHermetically sealed DMDs and optical assembly
Lamp3kW - 7kW (Xenon lamp)
Light output33,000 lumens (6.5 kW lamp)
Screen sizeUp to 32m / 105 ft wide
Contrast ratio2,000:1

(typical value when using a hight contrast lens)
Digital Video InputsSlot for 2 x SMPTE 292M inputs or 4K Integrated Media Block

2 x DVI input

both selectable as single and dual link
Control I/OEthernet, 8x GPIO, Serial RS232
Prime lenses1.13 - 1.66

1.27 - 1.86

1.45 - 2.13

1.63 - 2.53

1.95 - 3.26

2.53 - 4.98

equivalent throw ratios for 4K 1.38" DMD
Projector diagnosticsvia PC touch panel

via Communicator control software

via SNMP agent
Power requirements3W+N+PE 230/400V 16A 50-60Hz or 3W+PE 208V 27A 50-60Hz

30,000 BTU/hr (with 6.5kW - 7kW lamp)
Dimensions604(H) x 754(W) x 1129(D) mm

23.78(H) x 29.69(W) x 44.45(D) inch

NB.: min. 5 cm of air inlet spacing required at the bottom of projector
Weight141 kg (311 lbs)
Ambient temperature35°C / 95°F Max.
Exhaust airflow350 CFM
Standard FeaturesCLO (Constant Light Output)

Powerful SNMP agent

Motorized/memorized lens (focus, zoom & shift)

HDCP support

Full 2K triple flash 3D

Advanced patented DMD cooling
Options4K Integrated Media Block

ACS-2048

3D add-ons

Touch panel

Pedestal
