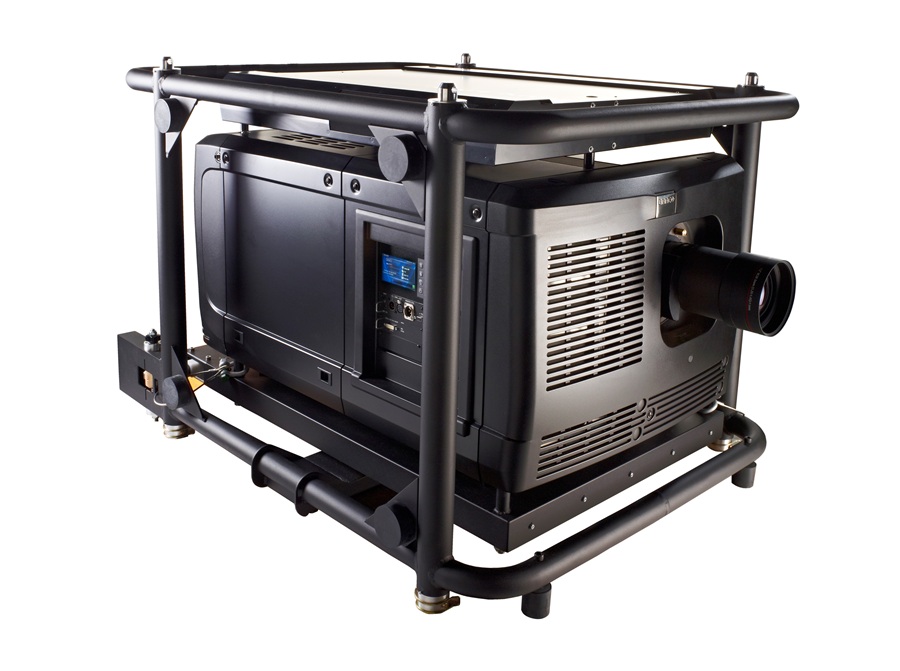

BARCO HDQ-2K40
型  號： HDQ-2K40
簡  介： 40000 流明、2K DLP投影機
  詳 細 說 明

Ultra-bright, stunning images



  • High-contrast 3-chip DLP™ engine

  • 2K resolution (2048 x 1080)

  • 40,000 center lumens

  • Xenon illumination

  • ImagePRO technology inside (Athena scaler)

  • Dual-core warp engine


Built for the rental & staging industry



  • Fully sealed optics

  • Extended wireless control options

  • 3D ready

  • Preview mode on LCD display

  • Easy to set up, install, service and transport thanks to solid and modular design

  • Minimum image latency

Projector type2K 3-chip DLP digital projector
Technology1.2" DMD™ x3
Resolution2048x1080
Brightness40,000 center lumens

37,000 ANSI lumens
Contrast ratio2,000:1 (standard)

Brightness uniformity90%
Aspect Ratio2048:1080
ScenergiXHorizontal and vertical edge blending
Lens typeXLD
LensesXLD 1:1; 1.45-1.8:1; 1.8-2.4:1; 2.2-3.0:1; 2.8-5.5; 5.5-8.5-1
Optical lens shiftVertical: +/-110%

Horizontal: +/-30% (on zoom lenses memorised)
Color correctionP7
Lamps7 kW xenon
Lamp lifetime500 Hrs
Transport with lampNo
Lamp house, quick replaceYes
Customer bulb replaceYes
Lamp warranty (field replace/ factory replace)90 days, 300 hours / pro rata 300 hours
Sealed DLP™ coreStandard
Optical dowserStandard
Picture-in-pictureTwo sources simultaneously
Orientationtable - side (portrait)
Otherscan be controlled by DMX 512 console, warping
DMX 512standard
WARPdirect adjust OSD + toolset
Integrated web serveryes
CLO (constant light output)Standard
3DActive eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 144 Hz
InputsDVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink
Optional Inputs5-BNC RGBHV (RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI-I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/Dual HDSDI/3G; 3D active input (HDMI/DisplayPort) feat. SENSIO 3D
Input ResolutionsFrom NTSC up to QXGA (2048x1536)
Max. pixel clock200 MHz
Software toolsProjector Toolset + Android app
ControlXLR wired + IR, RS232, Wifi, GSM (opt)
Network connection10/100 base-T, RJ-45 connection, Wifi (optional)
Power requirements200-240V /380-400V@50-60Hz
Max. power consumption8,000W
Noise level (typical at 25°C/77°F)"61 dB(A)
Operational ambient temperature0-35°C / 32°-104°F
Operational humidity0-80% (non condens)
Dissipation BTUMax. 27331 BTU/h
Dimensions (WxLxH)1025 x 1320 x 900mm

40.35 x 51.96 x 35.43 inches
Weight210kg (462.97lbs)
Shipping Dimensions(LxWxH)

1522 x 1242 x 1215 mm

49.92 x 48.90 x 27.83 inches
Shipping Weight from Factory270kg (595.25lbs)
Standard accessorieswireless/XLR wired rugged remote control; adjustable frame/clamps
CertificationsCompliant with UL60950-1 and EN60950-1
complies with FCC rules & regulations,
part 15 Class A and CE EN55022 Class A, RoHS
Warranty2 years standard, extendable up to 5 years
