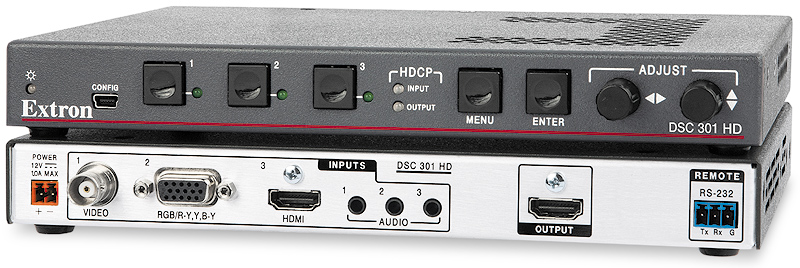

目前位置：首頁 > Extron DSC 301 HD號商品詳細資料 Extron DSC 301 HD 型  號： DSC 301 HD 簡  介： Extron DSC 301 HD 是一台 3 組輸入，相容 HDCP 的視頻解析度轉換器，其中包括 1 組 HDMI 輸入，可配置的高解析度類比和 Composite Video 輸入以及 1 組 HDMI 輸出。 DSC 301 HD 接受各種不同的視頻信號格式，包括 HDMI、HDTV、RGB、Component Video 信號和 HD 高解析度影像。它採用了 Extron 最先進的影像信號處理與 1080i 隔行掃描，EDID 管理器和自動輸入切換。可嵌入的 3 個立體聲輸入音頻訊號到 HDMI 輸出。前面板控制，直覺化的螢幕顯示，加上 USB 和 RS-232 連接，提供了靈活的控制和監控。為整體的專業設計考量，結構輕便易於使用，半機架寬的外箱使得 DSC 301 HD 輕便的外型適用於安裝在各種場合中使用。   詳 細 說 明 DSC 301 HD Video input    Number/signal type  1 Composite 1 RGBHV/YUV (YUVi, YUVp, and YUV-HD) 1 HDMI/DVI    Connectors  1 female BNC for composite 1 female 15-pin HD for RGB/YUV 1 female HDMI for HDMI/DVI    Nominal level  1 Vp-p for Y of YUV and composite video 0.7 Vp-p for RGB orf RGBHV, and for R-Y and B-Y of YUV    Minimum/maximum levels  Analog: 0.0 V to 2.0 Vp-p with no offset    Impedance  75 ohms    Horizontal frequency  15 kHz to 100 kHz    Vertical frequency  50 Hz to 120 Hz    Resolution range  640x480 to 1600x1200 and 1920x1200* NTSC, PAL, SECAM, 480p, 576p, 720p, 1080i, 1080p, and 2k *reduced blanking    Return loss  >30 dB @ 5 MHz    DC offset (max. allowable)  0.5 V Video processing    Decoder  12 bit digital (3D-adaptive comb filter)    Analog sampling  12 bits per color; 13.5 MHz standard (video) 170 MHz standard (RGB)    Digital pixel data bit depth  8, 10, or 12 bits per channel; 165 Mhz pixel clock (HDMI)    Colors  1 billion (10 bit processing) Video output    Number/signal type  1 HDMI (HDCP)    Connectors  1 female HDMI    Scaled resolutions  640x4806,8,9, 800x6006,8,9, 852x4806,8,9, 1024x7686,8,9, 1024x8526,8,9, 1024x10246,8,9, 1280x7686,8,9, 1280x8006,8,9, 1280x10246,8,9, 1360x7656,8,9, 1360x768 6,8,9, 1365x7686,8,9, 1365x10246,8,9, 1366x7686,8,9,1400x10506,8, 1440x9006,8,9, 1600x9006,8, 1600x1200 6,8, 1680x1050 6,8, 1920x1200 6,8, HDTV 480p 7,8, 576p 6, 720p 3,4,5,6,7,8, 1080i 6,7,8, 1080p 1,2,3,4,5,6,7,8, 2048x1080 1,2,3,4,5,6,7,8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz Sync    Input type  RGBHV, RGBS, RGsB, bi-level or tri-level component video    Input standards  NTSC 3.58, NTSC 4.43, PAL, SECAM    Input level  2.75 V to 5.0 Vp-p for RGBHV or RGBS 0.6 Vp-p for component video tri-level sync 0.3 Vp-p for component video bi-level sync, RGsB, or composite video    Input impedance  Horizontal and vertical: 10k ohms    Max. input voltage  5.0 Vp-p Audio    Frequency response  20 Hz to 20 kHz, ±0.5 dB    THD + Noise  < 0.1% @ 1 kHz, 20 Hz to 20 kHz bandwidth (at nominal level)    S/N  >90 dB, at maximum output (unweighted)    Crosstalk  ≤ -80 dB @ 1 kHz, fully loaded    Stereo channel separation  >80 dB @ 1 kHz Audio input    Number/signal type  3 stereo unbalanced    Connectors  (3) 3.5 mm TRS connectors    Impedance  10k ohms unbalanced    Nominal level  -10 dBV configurable    Maximum level  +7 dBV (unbalanced)    Input gain adjustment  -18 dB to +12 dB, adjustable per input, in 1 dB steps     NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu Audio output    Number/signal type  (1) 2-channel LCPM audio or digital pass-through    Connectors  1 female HDMI (shared with HDMI video)    Gain error  ±0.1 dB channel to channel Control/remote — decoder/scaler     NOTE     The front panel USB port and rear panel RS-232 port are independent of each other and can be used at the same time.    Serial control port  1 bidirectional RS-232 rear panel 3 pole captive screw connector    Baud rate and protocol  9600 (default), 8 data bits, 1 stop bit, no parity    USB control ports  1 front panel female mini USB B    USB standards  USB 2.0, high speed    Program control  Extron control/configuration program for WindowsR Extron Simple Instruction Set (SIS™) General    Power supply  External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts     Power consumption        Device  12 watts, 12.0 VDC       Device and power supply  14.6 watts, 100-240 VAC, 50-60 Hz    Temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing    Cooling  Convection, vents on top and sides    Thermal dissipation        Device  41.0 BTU/hr       Device and power supply  49.9 BTU/hr    Mounting        Rack mount  Yes, with optional rack shelf       Furniture mount  Yes, with optional under-desk or through-desk mounting kit    Enclosure type  Metal    Enclosure dimensions  1.0 H x 8.75" W x 6.0" D (half rack wide) (2.5 cm H x 22.2 cm W x 15.2 cm D) (Depth excludes connectors and knobs.)    Product weight  1.3 lbs (0.6 kg)    Shipping weight  3 lbs (2 kg)    Vibration  ISTA 1A in carton (International Safe Transit Association)    Regulatory compliance        Safety  CE, c-UL, UL       EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI       Environmental  Complies with the appropriate requirements of RoHS, WEEE.    Warranty  3 years parts and labor     NOTE     All nominal levels are at ±10%.     NOTE     Specifications are subject to change without notice. (8.0-011813-D4) 本商品瀏覽次數: 2689 次
