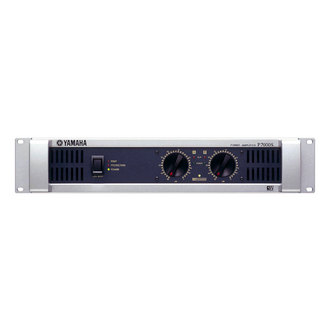

YAMAHA P7000S
型  號： P7000S
簡  介： 功率擴大機的多功能輸出入裝置與Yamaha揚聲器處理器，能夠提供高效能而且相當經濟實惠。
  詳 細 說 明
Yamaha's audio engineers have specifically designed the new P-Series power amplifiers to be perfect companions to the popular Club Series loudspeakers. To achieve this, they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the Club Series Speakers, and equipped them with YS Processing (Yamaha Speaker Processing) to deliver a signal that will result in optimum system performance.
Power is plentiful, ranging from 3200 watts from the P7000S to 1300 watts from the P2500S in 4 ohms bridged mode. If you want the perfect power amplifier for pair of Club S115s with a 500-watt program rating, for example, the P5000S with 500-watts per channel into 8 ohms is the obvious choice.
Further matching precision is afforded by Yamaha's proprietary YS Processing circuit. Each P-series amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the Club Series speakers. All models feature both XLR and 1/4-inch TRS inputs, and Neutrik Speakon, phone plug, and 5-way binding post outputs. Other features include Yamaha's exclusive EEEngine technology for high performance with exceptional efficiency, sweepable high and low pass filters for matching output to any loudspeakers, a compact and durable 2U chassis, and variable speed cooling fans.

100V models


Dynamic power; 1kHz 20ms nonclip2ohms1600W x 2
4ohms; Bridge3200W
Output power; 1kHz4ohms1100W x 2
8ohms750W x 2
Output power; 20Hz-20kHz4ohms950W x 2
8ohms750W x 2
8ohms; Bridge1900W

120V models


Dynamic power; 1kHz 20ms nonclip2ohms1600W x 2
4ohms; Bridge3200W
Output power; 1kHz4ohms1100W x 2
8ohms750W x 2
8ohms; Bridge2200W
Output power; 20Hz-20kHz4ohms950W x 2
8ohms700W x 2
8ohms; Bridge1900W

230V models


Dynamic power; 1kHz 20ms nonclip2ohms1600W x 2
4ohms; Bridge3200W
Output power; 1kHz4ohms1100W x 2
8ohms750W x 2
8ohms; Bridge2200W
Output power; 20Hz-20kHz4ohms950W x 2
8ohms650W x 2
8ohms; Bridge1900W

240V models


Dynamic power; 1kHz 20ms nonclip2ohms1600W x 2
4ohms; Bridge3200W
Output power; 1kHz4ohms1100W x 2
8ohms750W x 2
8ohms; Bridge2200W
Output power; 20Hz-20kHz4ohms950W x 2
8ohms700W x 2
8ohms; Bridge1900W

General specifications


Total harmonic distortionLess than 0.1% (20Hz-20kHz; Halfpower), RL=4ohms
Intermodulation distortionLess than 0.1% (60Hz:7kHz=4:1; Halfpower)
Frequency response+0dB, -1.5dB (RL=8ohms, 20Hz - 50kHz)
S/N ratio104dB
Power band width10Hz-40kHz
CrosstalkLess than -70dB
Damping factorMore than 350
Voltage gain32dB
Input sensitivity+8dBu
I/O ConnectorsLine input / output ports2x XLR-3-31, 2x 1/4"TRS phone jack
Speaker output ports2x speakON, 2x 5-way binding post, 2x 1/4"Phone jack
ProcessorsHPF/LPF (25Hz-150Hz sweepable, 12dB/Oct), YS Processing
Protection circuitLoad protectionPower switch on/off mute; DC-fault (power supply shutdown)
Amplifier protectionTemp. detection (Heat sink temp ≧90°C) (Operation not restored automatically), VI limiter (RL≦1ohm)
Amplifier classEEEngine
Cooling2x Variable-speed fan
Power requirementsDepend on area of purchase; 100V, 120V, 230V or 240V; 50/60Hz
Power consumptionMusic source equivalent650W
Idling35W
DimensionsW480mm; 18-7/8in
H88mm; 3-7/16in (2U)
D456mm; 17-15/16in
Net weight12kg; 26.5lbs
AccessoriesOwner’s manual, Security cover (with a hex wrench)
